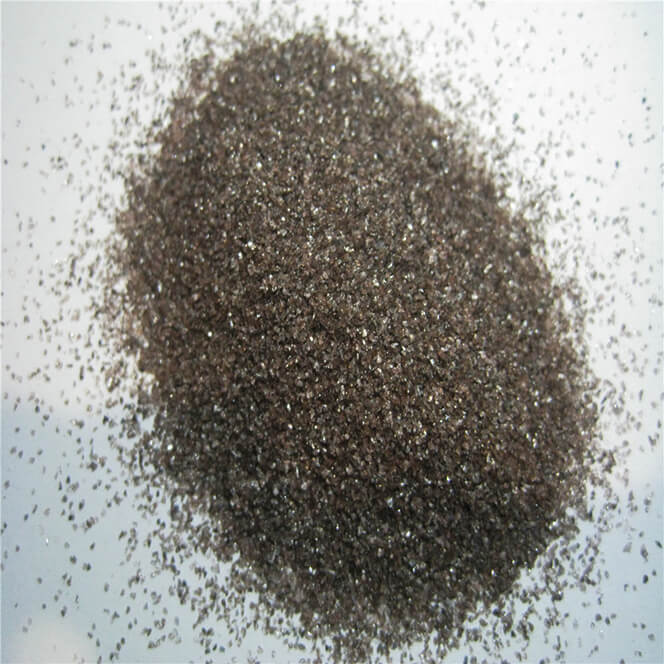

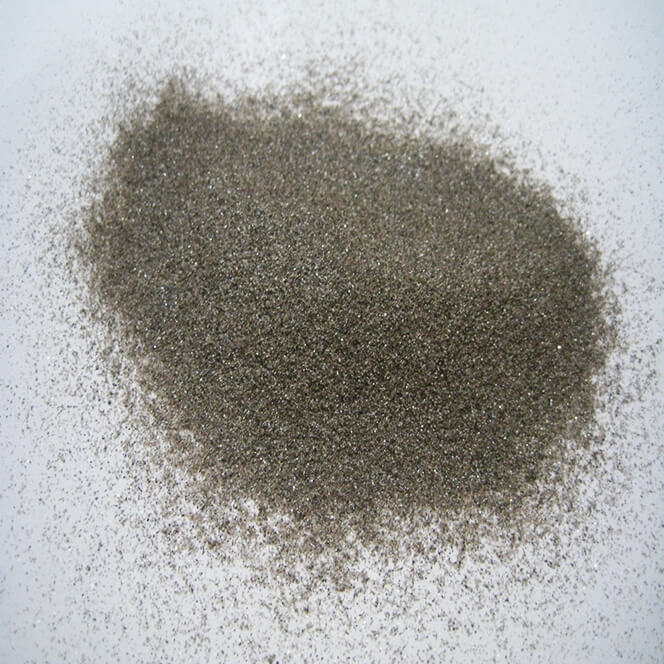

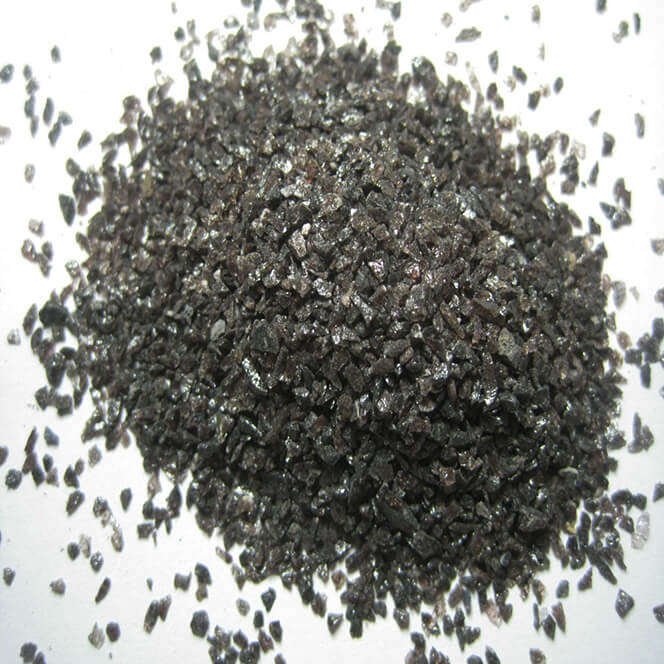

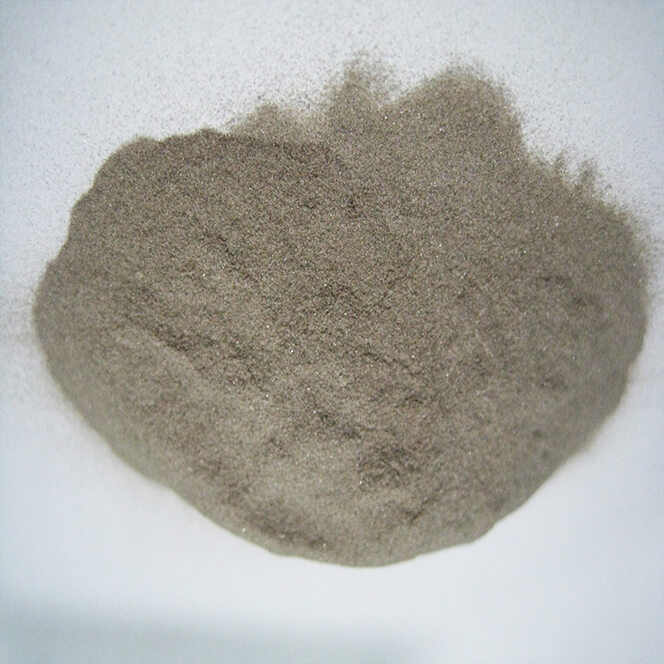

Brown fused alumina is made of bauxite, anthracite coal, and smelted in electric-arc furnace of high temperature more than 2000 degrees. Abrasives tools made by Haixu/Sicheng brown fused alumina are suitable for metal with high tensile(like: steel, malleable iron, bronze etc). Suitable for product high consolidation abrasive, and suitable for grinding, polishing, blasting, precision casting etc. Haixu/Sicheng brown fused alumina is also used for refractory material. Brown fused alumina with characteristics like: high purity, good crystalline liquidity, low coefficient of linear expansion, corrosion resistance, high temperature, high strength.
Mohs hardness |
9 |
Bulk density |
1.75-1.95g/cm3 |
Specific gravity |
3.6-3.9g/cm3 |
Volume density |
3.6-3.9g/cm3 |
Melting point |
2250°C |
Maximum service temperature |
1900°C |
Properties Type | /Sand 0-1,1-3, 3-5,5-8mm | /Fines 0-100# 0-200# 0-320# | |||
Guarantee Value | Typical Value | Guarantee Value | Typical Value | ||
Chemical Composition | Al2O3 | ≥94.5 | 96.1 | ≥92 | 94.1 |
SiO2 | ≤1.5 | 1.16 | ≤2 | 1.56 | |
Fe2O3 | ≤0.5 | 0.13 | ≤0.55 | 0.28 | |
TiO2 | ≤3 | 1.78 | ≤3.3 | 2.25 |
Properties Type | Grains | ||
8# 10# 12# 14# 16# 20# 22# 24# 30# 36# 40# 46# 54# 60# | |||
70# 80# 90# 100# 120# 150# 180# 220# | |||
Guarantee Value | Typical Value | ||
Chemical Composition | Al2O3 | ≥93 | 95.65 |
SiO2 | ≤2.0 | 1.04 | |
Fe2O3 | ≤1.5 | 0.14 | |
TiO2 | ≤3.5 | 2.2 |
Properties Type | Micropowder | |||
"W" | W63 W50 W40 W28 W20 W14 W10 W7 W5 W3.5 | |||
"FEPA" | F230 F240 F280 F320 F360 F400 F500 | |||
F600 F800 F1000 F1200 F1500 | ||||
"JIS" | 240# 280# 320# 360# 400# 500# 600# 700# 800# 1000# | |||
1200# 1500# 2000# 2500# 3000# | ||||
Guarantee Value | Typical Value | |||
Chemical Composition | Al2O3 | ≥92 | 93.8 | |
SiO2 | ≤2 | 1.4 | ||
Fe2O3 | ≤2 | 1.2 | ||
TiO2 | ≤4 | 3.2 |
